ISE Street Elbows
ISE-2N
ISE-2N - Image 2
ISE-2N - Image 3
ISE Street Elbows

ISE-2N

$13.69

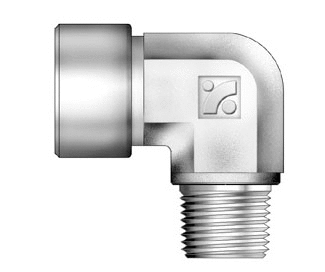

ISE 1/8 in. Female National Pipe Taper (FNPT) x 1/8 in. Male National Pipe Taper (MNPT) Street Elbow

Description

ISE 1/8 in. Female National Pipe Taper (FNPT) x 1/8 in. Male National Pipe Taper (MNPT) Street Elbow

Specifications
End Size 44204
End Size 2 44204
End Type Female National Pipe Taper (NPT)
End Type 2 Male National Pipe Taper (NPT)
Inch/Metric Inch
Pressure Rating (Brass) 213bar, 3100psig
Pressure [Max] 427bar, 6200psig
Dimensions
Dimension E 4.8mm
Dimension H 12.7mm
Dimension L 24.1mm
Dimension S 19.6mm
Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok SS-2-SE
