Description

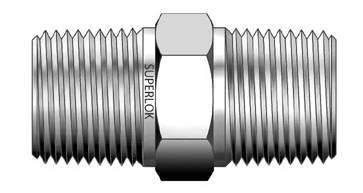

IHN 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Hex Nipple
| (ISO)/(BSP) Pipe Size | mm |
|---|---|
| End Type | Male National Pipe Thread (MNPT) |
| Inch/Metric | Inch |
| Pressure Rating for Brass Nipple | 275bar, 4000psig |
| Pressure [Max] | 551bar, 8000psig |
| Dimension A | 35.6mm |
|---|---|
| Dimension B | mm |
| Dimension C | mm |
| Dimension E | 7.1mm |
| Dimension H | 14.2mm |
| Swagelok | SS-4-HN |
|---|
