IBT-8N
$49.97

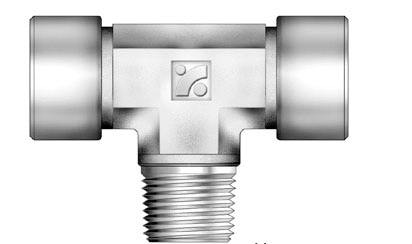

IBT 1/2 in. Female National Pipe Taper (FNPT) x 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee
Description
IBT 1/2 in. Female National Pipe Taper (FNPT) x 1/2 in. Male National Pipe Taper (MNPT) Pipe Size Branch Tee
| Inch/Metric | Inch |
|---|---|
| Pressure Rating (Brass) | 192bar, 2800psig |
| Pressure [Max] | 385bar, 5600psig |
| Dimension A | 74.0mm |
|---|---|
| Dimension E | 11.9mm |
| Dimension H | 25.4mm |
| Dimension L | 37.0mm |
| Dimension S | 35.3mm |
| Swagelok | SS-8-BT |
|---|
