Description

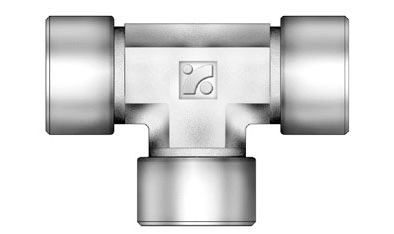

IFT 3/4 in. Female National Pipe Taper (FNPT) Pipe Size Female Tee
| Inch/Metric | Inch |
|---|---|
| Pressure Rating (Brass) | 172bar, 2500psig |
| Pressure [Max] | 351bar, 6400psig |
| Dimension A | 93.0mm |
|---|---|
| Dimension E | 23.9mm |
| Dimension H | 31.8mm |
| Dimension L | 46.5mm |
| Swagelok | SS-12-T |
|---|
