SFQC3B-S8
$72.18

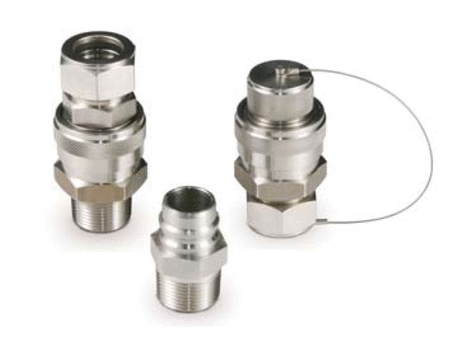

SFQC 1/2 in. x 1/2 in. Tube Outside Diameter Full Flow Quick Connect Body
Description
SFQC 1/2 in. x 1/2 in. Tube Outside Diameter Full Flow Quick Connect Body
Proven ball – lock mechanism provides positive connection. Simple push – pull action to connect and disconnect lines – no tools required. Compact coupling offers full flow without orifice restrictions. O-ring is easily replaced without disassembling
| End Size | 44198in |
|---|---|
| End Type | Array |
| Inch/Metric | Inch |
| Insertion Depth | 0.81in, 20.6mm |
| Orifice [Min] | 11.9mm |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature | 413bar, 600psig |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature | 6.8bar, 100psig |
| Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature | 6.8bar, 100psig |
| Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature | 206bar, 3000psig |
| Dimension A | 56.0mm |
|---|---|
| Dimension D | 33.0mm |
| Dimension F | 27.0mm |
| Swagelok | SS-QF8-B-810 |
|---|
