SSMC 8-8U
$17.49

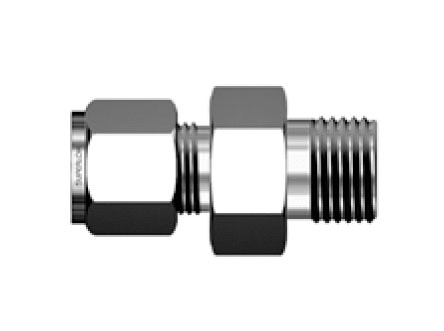

SSMC 1/2 in. Tube Outside Diameter D x 3/4-16 Male Society of Automotive Engineering (SAE) Connector with O-Ring
Description
SSMC 1/2 in. Tube Outside Diameter D x 3/4-16 Male Society of Automotive Engineering (SAE) Connector with O-Ring
| End Size | 42433in |
|---|---|
| End Type | Society of Automotive Engineering (SAE)/MS Straight Thread |
| Inch/Metric | Inch |
| O-Ring Uniform Size Number | 3-908 |
| Tube Outside Diameter D | 1/2in |
| Width Across Flats h | 7/8in |
| Dimension A | 22.86mm |
|---|---|
| Dimension B | 21.84mm |
| Dimension I | 31.75mm |
| Dimension I1 | 11.17mm |
| Dimension L | 41.91mm |
| Dimension d [Min] | 10.41mm |
| Swagelok | SS-810-1-8ST |
|---|
