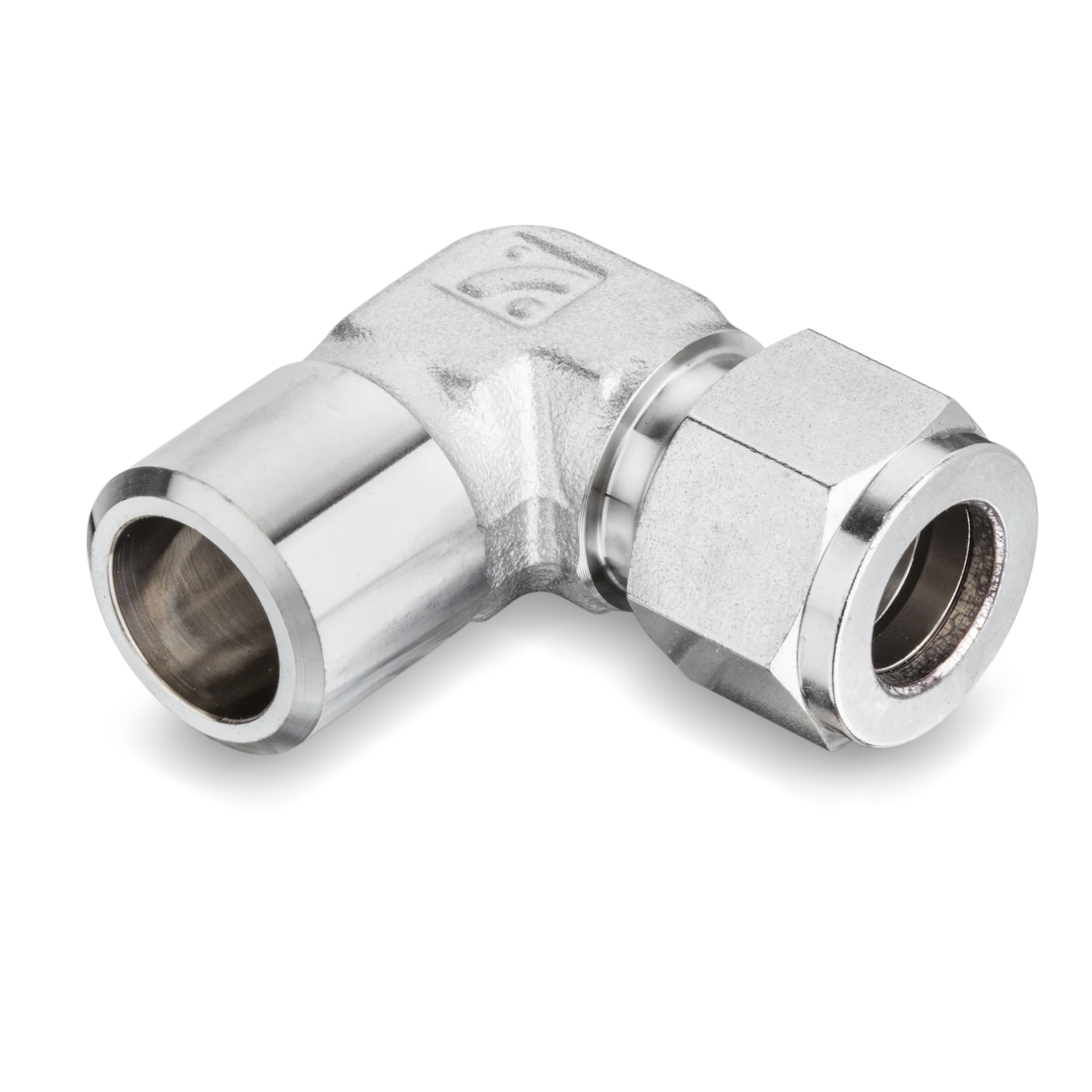

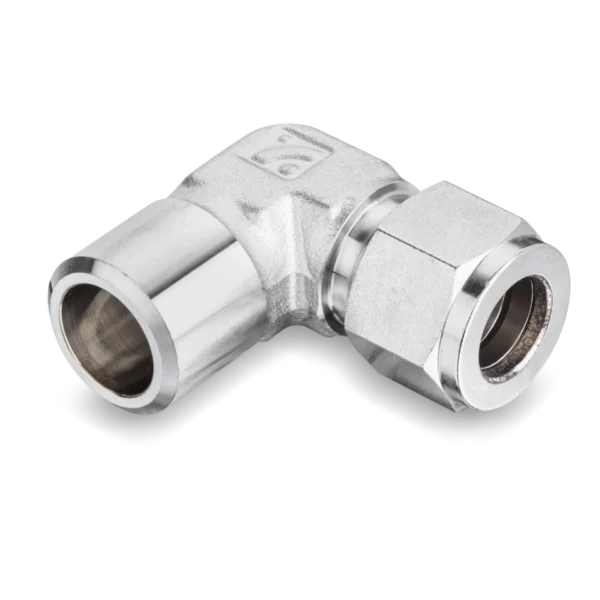

SMPWE Male Pipe Weld Elbows
Price range: $35.98 through $35.98
See individual part details below
Access our complete line of SMPWE Male Pipe Weld Elbows featuring precision-engineered designs. Our selection includes durable stainless steel elbows with welded end connections for your fluid system. Browse below to instantly request a quote or purchase the pipe weld elbows with industrial-grade construction.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

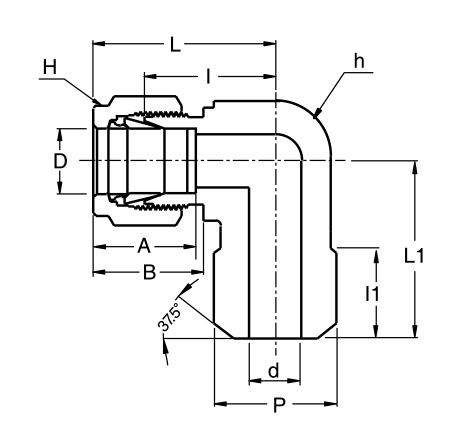

Description
| Angle | 90º |
|---|---|
| Inch/Metric | Inch |
| Outside Diameter Pipe Size (P) | 21.30mm |
| Superlok Part Type | Weld Elbow |
| Tube Outside Diameter D | 1/2in |
| Width Across Flats H | 7/8in |
| Dimension A | 22.86mm |
|---|---|
| Dimension B | 21.84mm |
| Dimension I | 25.90mm |
| Dimension I1 | 19.05mm |
| Dimension L | 36.06mm |
| Dimension L1 | 33.02mm |
| Dimension d [Min] | 10.41mm |
Available Sizes
SMPWE Male Pipe Weld Elbows SMPWE-8-8P
SMPWE Male Pipe Weld Elbows, Connects Fractional Tubes to Pipe
$35.98
$35.98
