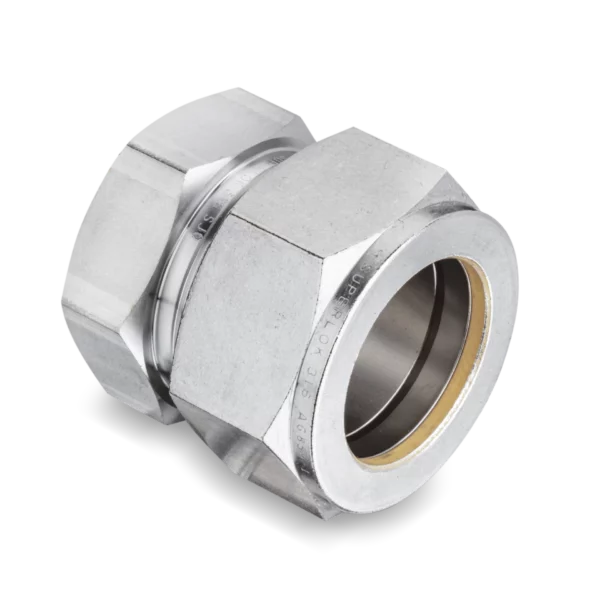

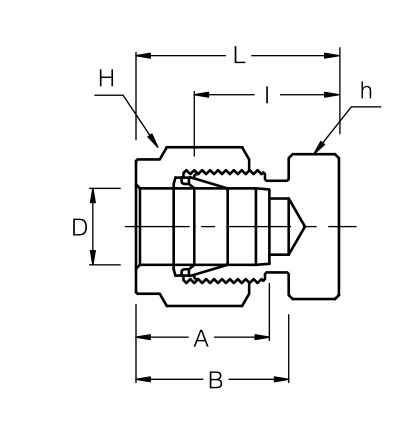

Print Page Email Page SC Fitting Caps $5.95 – $33.53Price range: $5.95 through $33.53 See individual part details below Request Quote (805) 658-2043 Add to quote This product is already in your quote request list. Browse the list Description Specifications Material 316 Stainless Steel Superlok Part Type Fitting Cap Available Sizes SC Fitting Caps SC-1 SC 1/16 in. Tube Outside Diameter D Fitting Cap SC-1 quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 8.63mm Dimension B 10.92mm Dimension I 11.20mm Dimension L 14.98mm Specifications Description SC 1/16 in. Tube Outside Diameter D Fitting Cap Inch/Metric Inch Material 316 Stainless Steel Tube Outside Diameter D 1/16in, mm Width Across Flats h 5/16in, mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-100-C SC-1 quantity Add to Cart or Quote SC Fitting Caps SC-2 SC 1/8 in. Tube Outside Diameter D Fitting Cap SC-2 quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 12.70mm Dimension B 15.24mm Dimension I 13.46mm Dimension L 20.06mm Specifications Description SC 1/8 in. Tube Outside Diameter D Fitting Cap Inch/Metric Inch Material 316 Stainless Steel Tube Outside Diameter D 1/8in, mm Width Across Flats h 7/16in, mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-200-C SC-2 quantity Add to Cart or Quote SC Fitting Caps SC-4 SC 1/4 in. Tube Outside Diameter D Fitting Cap SC-4 quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 15.24mm Dimension B 17.78mm Dimension I 16.00mm Dimension L 23.36mm Specifications Description SC 1/4 in. Tube Outside Diameter D Fitting Cap Inch/Metric Inch Material 316 Stainless Steel Tube Outside Diameter D 1/4in, mm Width Across Flats h 1/2in, mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-400-C SC-4 quantity Add to Cart or Quote SC Fitting Caps SC-6 SC 3/8 in. Tube Outside Diameter D Fitting Cap SC-6 quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 16.76mm Dimension B 19.30mm Dimension I 18.28mm Dimension L 25.65mm Specifications Description SC 3/8 in. Tube Outside Diameter D Fitting Cap Inch/Metric Inch Material 316 Stainless Steel Tube Outside Diameter D 3/8in, mm Width Across Flats h 5/8in, mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-600-C SC-6 quantity Add to Cart or Quote SC Fitting Caps SC-6M SC 6 mm Tube Outside Diameter D Fitting Cap SC-6M quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 15.3mm Dimension B 17.7mm Dimension I 15.7mm Dimension L 23.1mm Specifications Description SC 6 mm Tube Outside Diameter D Fitting Cap Inch/Metric Metric Material 316 Stainless Steel Tube Outside Diameter D in, 6mm Width Across Flats h in, 14mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-6M0-C SC-6M quantity Add to Cart or Quote SC Fitting Caps SC-8 SC 1/2 in. Tube Outside Diameter D Fitting Cap SC-8 quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 22.86mm Dimension B 21.84mm Dimension I 19.05mm Dimension L 29.21mm Specifications Description SC 1/2 in. Tube Outside Diameter D Fitting Cap Inch/Metric Inch Material 316 Stainless Steel Tube Outside Diameter D 1/2in, mm Width Across Flats h 13/16in, mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-810-C SC-8 quantity Add to Cart or Quote SC Fitting Caps SC-8M SC 8 mm Tube Outside Diameter D Fitting Cap SC-8M quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 16.2mm Dimension B 18.6mm Dimension I 17.0mm Dimension L 24.5mm Specifications Description SC 8 mm Tube Outside Diameter D Fitting Cap Inch/Metric Metric Material 316 Stainless Steel Tube Outside Diameter D in, 8mm Width Across Flats h in, 15mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-8M0-C SC-8M quantity Add to Cart or Quote SC Fitting Caps SC-10 SC 5/8 in. Tube Outside Diameter D Fitting Cap SC-10 quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 24.38mm Dimension B 21.84mm Dimension I 19.81mm Dimension L 29.97mm Specifications Description SC 5/8 in. Tube Outside Diameter D Fitting Cap Inch/Metric Inch Material 316 Stainless Steel Tube Outside Diameter D 5/8in, mm Width Across Flats h 15/16in, mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-1010-C SC-10 quantity Add to Cart or Quote SC Fitting Caps SC-10M SC 10 mm Tube Outside Diameter D Fitting Cap SC-10M quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 17.2mm Dimension B 19.5mm Dimension I 19.0mm Dimension L 26.6mm Specifications Description SC 10 mm Tube Outside Diameter D Fitting Cap Inch/Metric Metric Material 316 Stainless Steel Tube Outside Diameter D in, 10mm Width Across Flats h in, 18mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-10M0-C SC-10M quantity Add to Cart or Quote SC Fitting Caps SC-12 SC 3/4 in. Tube Outside Diameter D Fitting Cap SC-12 quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 24.38mm Dimension B 21.84mm Dimension I 23.33mm Dimension L 33.49mm Specifications Description SC 3/4 in. Tube Outside Diameter D Fitting Cap Inch/Metric Inch Material 316 Stainless Steel Tube Outside Diameter D 3/4in, mm Width Across Flats h 1-1/16in, mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-1210-C SC-12 quantity Add to Cart or Quote SC Fitting Caps SC-12M SC 12 mm Tube Outside Diameter D Fitting Cap SC-12M quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 22.8mm Dimension B 22.0mm Dimension I 19.0mm Dimension L 29.1mm Specifications Description SC 12 mm Tube Outside Diameter D Fitting Cap Inch/Metric Metric Material 316 Stainless Steel Tube Outside Diameter D in, 12mm Width Across Flats h in, 22mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-12M0-C SC-12M quantity Add to Cart or Quote SC Fitting Caps SC-14 SC 7/8 in. Tube Outside Diameter D Fitting Cap SC-14 quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 25.90mm Dimension B 21.84mm Dimension I 23.87mm Dimension L 34.03mm Specifications Description SC 7/8 in. Tube Outside Diameter D Fitting Cap Inch/Metric Inch Material 316 Stainless Steel Tube Outside Diameter D 7/8in, mm Width Across Flats h 1-3/16in, mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-1410-C SC-14 quantity Add to Cart or Quote SC Fitting Caps SC-16 SC 1 in. Tube Outside Diameter D Fitting Cap SC-16 quantity Add to Cart or Quote Specifications Dimensions Compatibility Dimensions Dimension A 31.24mm Dimension B 26.41mm Dimension I 26.16mm Dimension L 38.35mm Specifications Description SC 1 in. Tube Outside Diameter D Fitting Cap Inch/Metric Inch Material 316 Stainless Steel Tube Outside Diameter D 1in, mm Width Across Flats h 1-3/8in, mm Compatibility This part may be used in place of the following parts from other manufacturers Swagelok SS-1610-C SC-16 quantity Add to Cart or Quote
