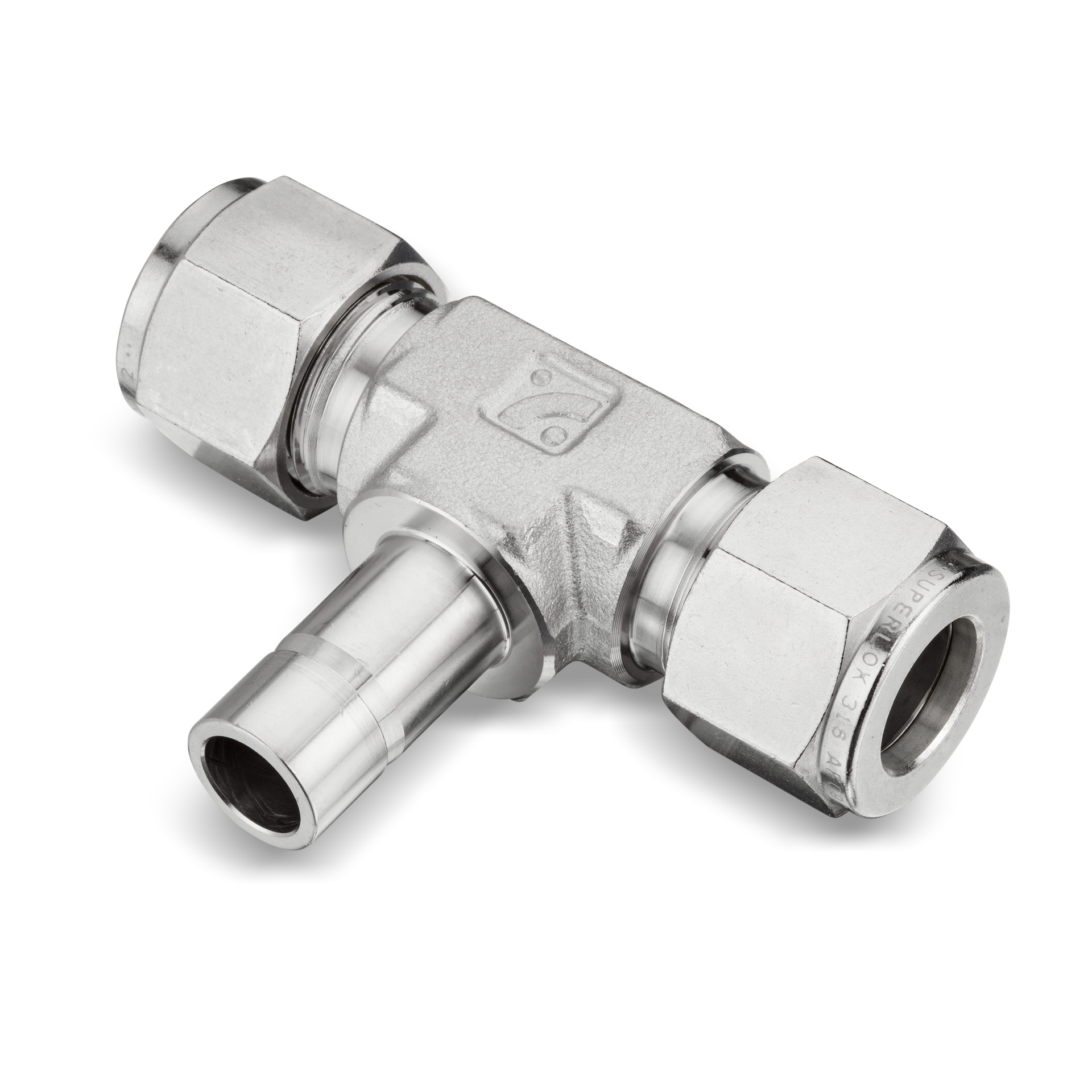

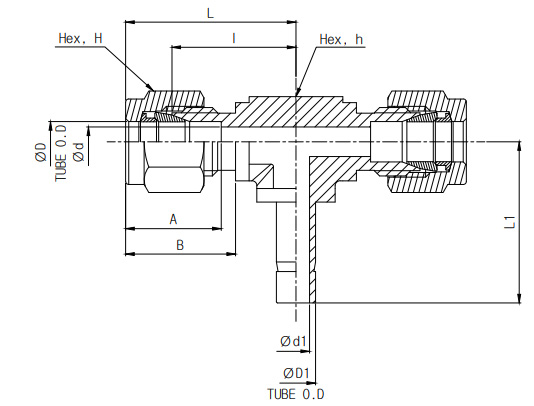

Print Page Email Page SABT – Tube Stub Branch Tee $32.99 – $48.67Price range: $32.99 through $48.67 See individual part details below Request Quote (805) 658-2043 Description Specifications Body A182 F316 Brand Superlok® Ferrule Back Stainless Steel 316 Ferrule Front Stainless Steel 316 Inch/Metric Inch Material 316 Stainless Steel NUT A276-316 Part Number SABT Available Sizes SABT - Tube Stub Branch Tee SABT-6 3/8″ O.D. X 3/8″ Tube Stub, Adjustable Branch Tee $32.99 SABT - Tube Stub Branch Tee quantity Add to Cartor Quote Specifications Dimensions Dimensions Dimension A (mm) 17.0 Dimension B (mm) 19.4 Dimension I (mm) 23.9 Dimension L (mm) 31.4 Dimension L1 (mm) 29.5 Specifications Description Array Tube O.D, ØD (in) 3/8 Tube O.D, ØD1 (in) 3/8 Width Across Flats h (mm) 17.5 Ød (mm) 7.1 Ød1 (mm) 6.9 $32.99 SABT - Tube Stub Branch Tee quantity Add to Cartor Quote SABT - Tube Stub Branch Tee SABT-8 1/2 in O.D. X 1/2 in Tube Stub, Adjustable Branch Tee $48.67 SABT - Tube Stub Branch Tee quantity Add to Cartor Quote Specifications Dimensions Dimensions Dimension A (mm) 22.9 Dimension B (mm) 22.1 Dimension I (mm) 25.9 Dimension L (mm) 36.1 Dimension L1 (mm) 37.8 Specifications Description Array Tube O.D, ØD (in) 1/2 Tube O.D, ØD1 (in) 1/2 Width Across Flats h (mm) 22.2 Ød (mm) 10.4 Ød1 (mm) 9.4 $48.67 SABT - Tube Stub Branch Tee quantity Add to Cartor Quote
