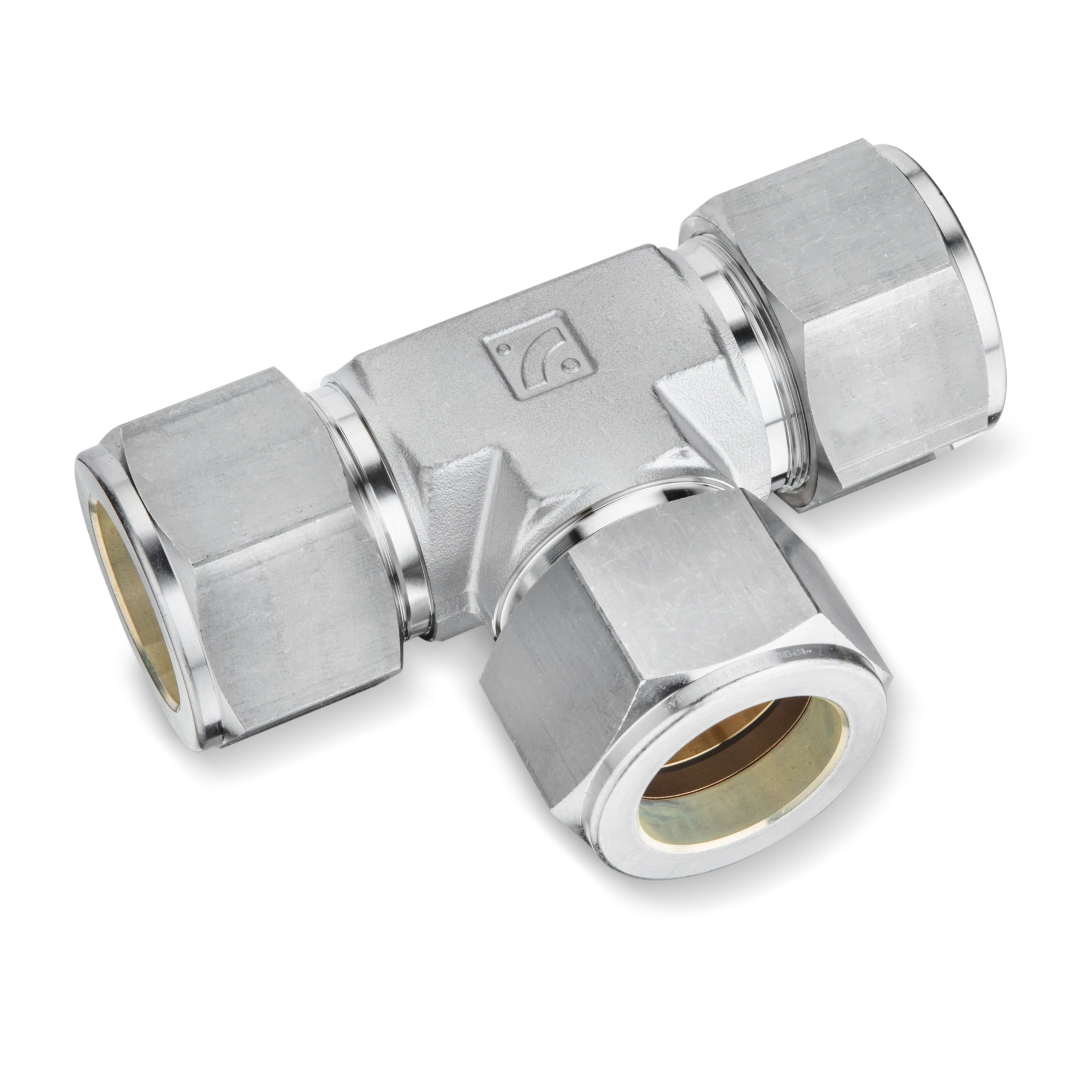

SUT Union Tees

Price range: $21.27 through $921.85

Access our complete line of union tee fittings for three-way fluid connections. Our selection provides easy installation and maintenance for your fluid system. Browse below to request quotes or purchase the union tee you need instantly.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (805) 658-2043

Add to quote

Description

Specifications
Superlok Part Type	Union Tee

Available Sizes

SUT Union Tees SUT-1

SUT 1/16 in. Tube Outside Diameter D Union Tee

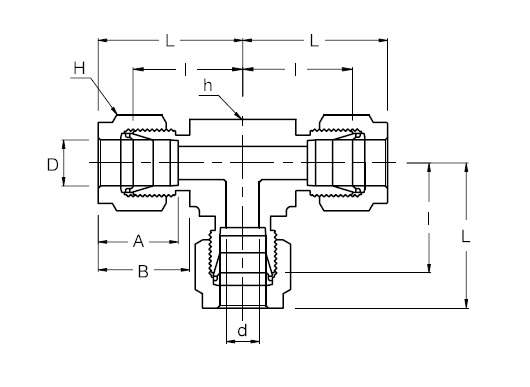

Dimensions
Dimension A	8.63mm
Dimension B	10.92mm
Dimension I	14.00mm
Dimension L	18.03mm
Dimension d [Min]	1.27mm

Specifications
Description	SUT 1/16 in. Tube Outside Diameter D Union Tee
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	1/16in, mm
Width Across Flats h	3/8in, mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-100-3

SUT Union Tees SUT-2

SUT 1/8 in. Tube Outside Diameter D Union Tee

Dimensions
Dimension A	12.70mm
Dimension B	15.24mm
Dimension I	15.80mm
Dimension L	22.35mm
Dimension d [Min]	2.28mm

Specifications
Description	SUT 1/8 in. Tube Outside Diameter D Union Tee
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	1/8in, mm
Width Across Flats h	3/8in, mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-200-3

SUT Union Tees SUT-4

SUT 1/4 in. Tube Outside Diameter D Union Tee

Dimensions
Dimension A	15.24mm
Dimension B	17.78mm
Dimension I	20.10mm
Dimension L	27.40mm
Dimension d [Min]	4.82mm

Specifications
Description	SUT 1/4 in. Tube Outside Diameter D Union Tee
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	1/4in, mm
Width Across Flats h	1/2in, mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-400-3

SUT Union Tees SUT-4M

SUT 4 mm Tube Outside Diameter D Union Tee

Dimensions
Dimension A	13.7mm
Dimension B	16.1mm
Dimension I	18.8mm
Dimension L	25.4mm
Dimension d [Min]	2.4mm

Specifications
Description	SUT 4 mm Tube Outside Diameter D Union Tee
Inch/Metric	Metric
Material	316 Stainless Steel
Tube Outside Diameter D	in, 4mm
Width Across Flats h	in, 12.7mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-4M0-3

SUT Union Tees SUT-5

SUT 5/16 in. Tube Outside Diameter D Union Tee

Dimensions
Dimension A	16.25mm
Dimension B	18.54mm
Dimension I	22.35mm
Dimension L	29.71mm
Dimension d [Min]	6.35mm

Specifications
Description	SUT 5/16 in. Tube Outside Diameter D Union Tee
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	5/16in, mm
Width Across Flats h	5/8in, mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-500-3

SUT Union Tees SUT-6

SUT 3/8 in. Tube Outside Diameter D Union Tee

Dimensions
Dimension A	16.76mm
Dimension B	19.30mm
Dimension I	23.11mm
Dimension L	30.48mm
Dimension d [Min]	7.11mm

Specifications
Description	SUT 3/8 in. Tube Outside Diameter D Union Tee
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	3/8in, mm
Width Across Flats h	5/8in, mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-600-3

SUT Union Tees SUT-6M

SUT 6 mm Tube Outside Diameter D Union Tee

Dimensions
Dimension A	15.3mm
Dimension B	17.7mm
Dimension I	19.6mm
Dimension L	27.0mm
Dimension d [Min]	4.8mm

Specifications
Description	SUT 6 mm Tube Outside Diameter D Union Tee
Inch/Metric	Metric
Material	316 Stainless Steel
Tube Outside Diameter D	in, 6mm
Width Across Flats h	in, 12.7mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-6M0-3

SUT Union Tees SUT-8

SUT 1/2 in. Tube Outside Diameter D Union Tee

Dimensions
Dimension A	22.86mm
Dimension B	21.84mm
Dimension I	25.90mm
Dimension L	36.06mm
Dimension d [Min]	10.41mm

Specifications
Description	SUT 1/2 in. Tube Outside Diameter D Union Tee
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	1/2in, mm
Width Across Flats h	13/16in, mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-810-3

SUT Union Tees SUT-8M

SUT 8 mm Tube Outside Diameter D Union Tee

Dimensions
Dimension A	16.2mm
Dimension B	18.6mm
Dimension I	22.4mm
Dimension L	29.9mm
Dimension d [Min]	6.4mm

Specifications
Description	SUT 8 mm Tube Outside Diameter D Union Tee
Inch/Metric	Metric
Material	316 Stainless Steel
Tube Outside Diameter D	in, 8mm
Width Across Flats h	in, 15.9mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-8M0-3

SUT Union Tees SUT-10

SUT 5/8 in. Tube Outside Diameter D Union Tee

Dimensions
Dimension A	24.38mm
Dimension B	21.84mm
Dimension I	28.70mm
Dimension L	38.86mm
Dimension d [Min]	12.70mm

Specifications
Description	SUT 5/8 in. Tube Outside Diameter D Union Tee
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	5/8in, mm
Width Across Flats h	1in, mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-1010-3

SUT Union Tees SUT-12

SUT 3/4 in. Tube Outside Diameter D Union Tee

Dimensions
Dimension A	24.38mm
Dimension B	21.84mm
Dimension I	29.71mm
Dimension L	39.87mm
Dimension d [Min]	15.74mm

Specifications
Description	SUT 3/4 in. Tube Outside Diameter D Union Tee
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	3/4in, mm
Width Across Flats h	1-1/16in, mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-1210-3

SUT Union Tees SUT-12M

SUT 12 mm Tube Outside Diameter D Union Tee

Dimensions
Dimension A	22.8mm
Dimension B	22.0mm
Dimension I	25.90mm
Dimension L	36.0mm
Dimension d [Min]	9.5mm

Specifications
Description	SUT 12 mm Tube Outside Diameter D Union Tee
Inch/Metric	Metric
Material	316 Stainless Steel
Tube Outside Diameter D	in, 12mm
Width Across Flats h	in, 20.6mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-12M0-3

SUT Union Tees SUT-14

SUT 7/8 in. Tube Outside Diameter D Union Tee

Dimensions
Dimension A	25.90mm
Dimension B	21.84mm
Dimension I	34.54mm
Dimension L	44.70mm
Dimension d [Min]	18.28mm

Specifications
Description	SUT 7/8 in. Tube Outside Diameter D Union Tee
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	7/8in, mm
Width Across Flats h	1-3/8in, mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-1410-3

SUT Union Tees SUT-16

SUT 1 in. Tube Outside Diameter D Union Tee

Dimensions
Dimension A	31.24mm
Dimension B	26.41mm
Dimension I	36.83mm
Dimension L	49.02mm
Dimension d [Min]	22.35mm

Specifications
Description	SUT 1 in. Tube Outside Diameter D Union Tee
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	1in, mm
Width Across Flats h	1-3/8in, mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-1610-3

SUT Union Tees SUT-20

SUT 1-1/4 in. Tube Outside Diameter D Union Tee

Dimensions
Dimension A	41.15mm
Dimension B	38.86mm
Dimension I	44.45mm
Dimension L	66.55mm
Dimension d [Min]	27.69mm

Specifications
Description	SUT 1-1/4 in. Tube Outside Diameter D Union Tee
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	1-1/4in, mm
Width Across Flats h	1-11/16in, mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-2000-3

SUT Union Tees SUT-24

SUT 1-1/2 in. Tube Outside Diameter D Union Tee

Dimensions
Dimension A	50.04mm
Dimension B	45.21mm
Dimension I	50.80mm
Dimension L	77.98mm
Dimension d [Min]	34.04mm

Specifications
Description	SUT 1-1/2 in. Tube Outside Diameter D Union Tee
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	1-1/2in, mm
Width Across Flats h	2in, mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-2400-3

SUT Union Tees SUT-32

SUT 2 in. Tube Outside Diameter D Union Tee
