SBHRU Bulkhead Reducing Unions
SBHRU 8-4
SBHRU 8-4 - Image 2
SBHRU 8-4 - Image 3
SBHRU Bulkhead Reducing Unions

SBHRU 8-4

$34.25

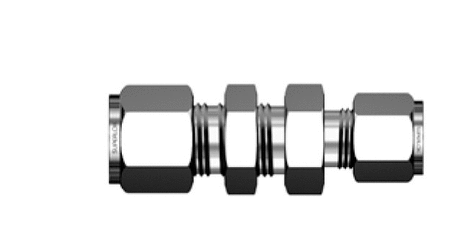

SBHRU 1/2 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Bulkhead Reducing Union

Description

SBHRU 1/2 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Bulkhead Reducing Union

Specifications
Inch/Metric Inch
Panel Thickness [Max] 12.70mm
Tube Outside Diameter D 1/2in
Tube Outside Diameter D1 1/4in
Width Across Flats H1 9/16in
Width Across Flats h 15/16in
Dimensions
Dimension A 22.86mm
Dimension A1 15.24mm
Dimension I 49.27mm
Dimension I1 31.75mm
Dimension L 66.80mm
Dimension L1 41.91mm
Dimension L2 17.78mm
Dimension d [Min] 4.82mm
Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok SS-810-61-4
