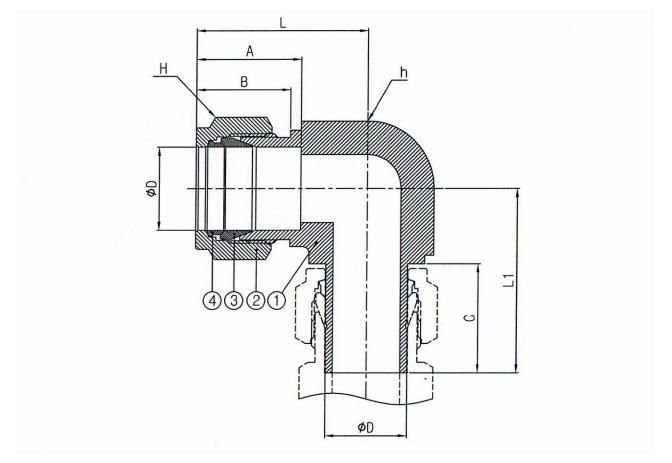

SAE – Compression x Tube Stub Elbow

Name: SAE - Compression x Tube Stub Elbow
SKU: SAE - Compression x Tube Stub Elbow
Availability: OutOfStock

Price range: $29.14 through $71.48

$0.00

Description

Specifications
Body	Stainless Steel 316
Description	SAE - Compression x Tube Stub Elbow
Ferrule Back	Stainless Steel 316
Ferrule Front	Stainless Steel 316
Inch/Metric	Inch
NUT	Stainless Steel 316

Available Sizes

SAE-4 - 1/4" O.D. Tube X 1/4" Tube Stub 90°

$29.14

SAE-6 - 3/8" O.D. Tube X 3/8" Tube Stub 90°

$31.98

SAE-8 - 1/2" O.D. Tube X 1/2" Tube Stub 90°

$39.67

SAE-12 - 3/4 in O.D. X 3/4 in Tube Stub 90°

$59.38

SAE-16 - 1" in O.D. X 1" in Tube Stub 90°

$71.48
