SME 5-2N
$17.00

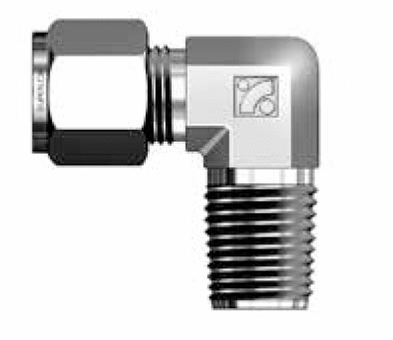

SME 5/16 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
Description
SME 5/16 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
| Angle | 90º |
|---|---|
| End Size | 44204in |
| End Type | Female National Pipe Thread (NPT) |
| Inch/Metric | Inch |
| Tube Outside Diameter D | 5/16in, mm |
| Width Across Flats h | 9/16in, mm |
| Dimension A | 16.25mm |
|---|---|
| Dimension B | 18.54mm |
| Dimension I | 21.33mm |
| Dimension L | 28.7mm |
| Dimension L1 | 19.81mm |
| Dimension d [Min] | 4.82mm |
| Swagelok | SS-500-2-2 |
|---|
