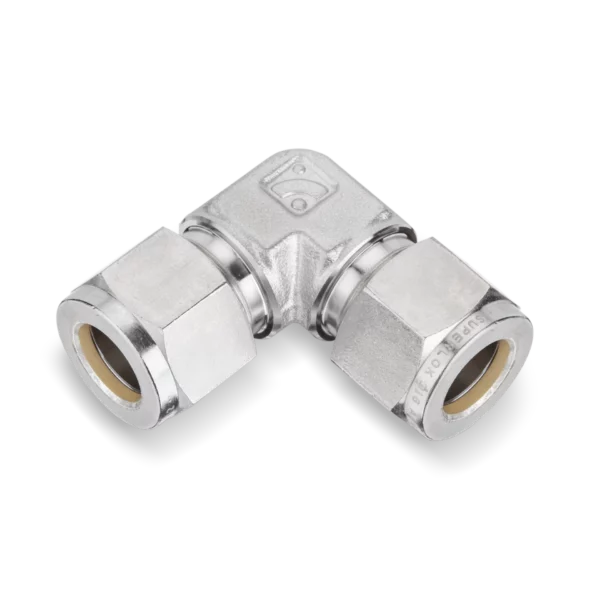

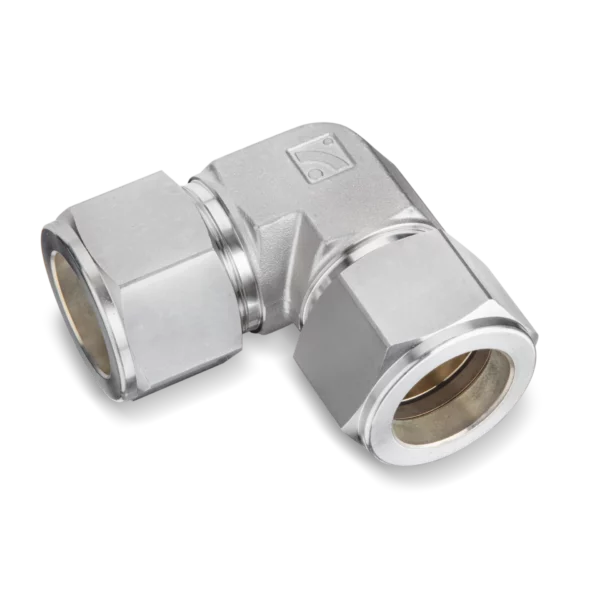

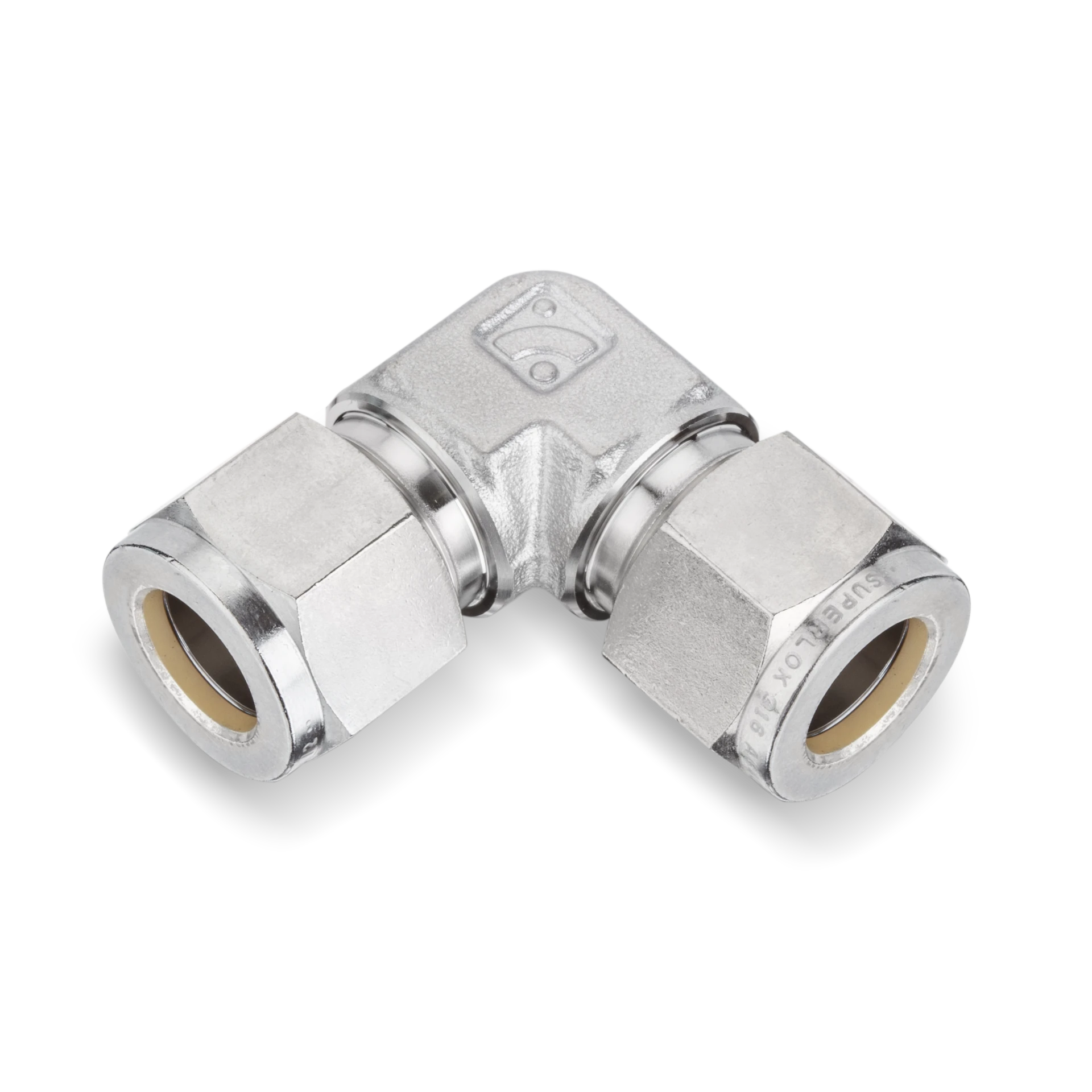

SUE 90 Degree Union Elbows

Price range: $16.69 through $534.69

Access our complete line of 90 degree union elbow fittings for your right-angle connections. Our ensures easy installation and maintenance for your fluid system. Browse below to instantly request quotes or purchase the 90 degree union elbow you need.

Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (805) 658-2043

Add to quote

Description

Specifications
Angle	90º
Superlok Part Type	Union Elbows

Available Sizes

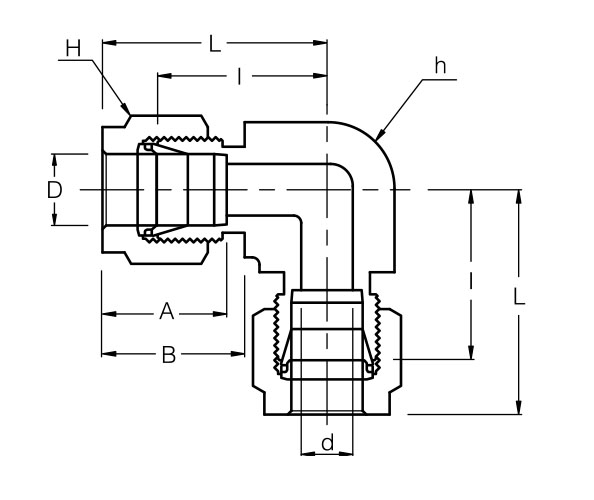

SUE 90 Degree Union Elbows SUE-1

SUE 1/16 in. Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	8.63mm
Dimension B	8.63mm
Dimension I	14.00mm
Dimension L	18.03mm
Dimension d [Min]	1.27mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-100-9

SUE 90 Degree Union Elbows SUE-2

SUE 1/8 in. Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	12.70mm
Dimension B	12.70mm
Dimension I	15.74mm
Dimension L	22.35mm
Dimension d [Min]	2.28mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-200-9

SUE 90 Degree Union Elbows SUE-4

SUE 1/4 in. Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	15.24mm
Dimension B	15.24mm
Dimension I	20.10mm
Dimension L	27.40mm
Dimension d [Min]	4.82mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-400-9

SUE 90 Degree Union Elbows SUE-5

SUE 5/16 in. Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	16.25mm
Dimension B	16.25mm
Dimension I	22.35mm
Dimension L	29.71mm
Dimension d [Min]	6.35mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-500-9

SUE 90 Degree Union Elbows SUE-6

SUE 3/8 in. Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	16.76mm
Dimension B	16.76mm
Dimension I	23.11mm
Dimension L	30.48mm
Dimension d [Min]	7.11mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-600-9

SUE 90 Degree Union Elbows SUE-6M

SUE 6 mm Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	15.3mm
Dimension B	17.7mm
Dimension I	19.6mm
Dimension L	27.0mm
Dimension d [Min]	4.8mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-6M0-9

SUE 90 Degree Union Elbows SUE-8

SUE 1/2 in. Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	22.86mm
Dimension B	22.86mm
Dimension I	25.90mm
Dimension L	36.06mm
Dimension d [Min]	10.41mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-810-9

SUE 90 Degree Union Elbows SUE-8M

SUE 8 mm Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	16.2mm
Dimension B	18.6mm
Dimension I	22.4mm
Dimension L	29.9mm
Dimension d [Min]	6.4mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-8M0-9

SUE 90 Degree Union Elbows SUE-10

SUE 5/8 in. Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	24.38mm
Dimension B	24.38mm
Dimension I	27.94mm
Dimension L	38.1mm
Dimension d [Min]	12.70mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-1010-9

SUE 90 Degree Union Elbows SUE-10M

SUE 10 mm Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	17.2mm
Dimension B	19.5mm
Dimension I	23.9mm
Dimension L	31.50mm
Dimension d [Min]	7.9mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-10M0-9

SUE 90 Degree Union Elbows SUE-12

SUE 3/4 in. Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	24.38mm
Dimension B	24.38mm
Dimension I	29.71mm
Dimension L	39.87mm
Dimension d [Min]	15.74mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-1210-9

SUE 90 Degree Union Elbows SUE-12M

SUE 12 mm Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	22.8mm
Dimension B	22.0mm
Dimension I	25.90mm
Dimension L	36.0mm
Dimension d [Min]	9.5mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-12M0-9

SUE 90 Degree Union Elbows SUE-14

SUE 7/8 in. Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	25.90mm
Dimension B	25.90mm
Dimension I	34.54mm
Dimension L	44.70mm
Dimension d [Min]	18.28mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-1410-9

SUE 90 Degree Union Elbows SUE-16

SUE 1 in. Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	31.24mm
Dimension B	31.24mm
Dimension I	36.83mm
Dimension L	49.02mm
Dimension d [Min]	22.35mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-1610-9

SUE 90 Degree Union Elbows SUE-18M

SUE 18 mm Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	24.4mm
Dimension B	22.0mm
Dimension I	29.7mm
Dimension L	39.8mm
Dimension d [Min]	15.1mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-18M0-9

SUE 90 Degree Union Elbows SUE-20

SUE 1-1/4 in. Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	41.15mm
Dimension B	41.15mm
Dimension I	44.45mm
Dimension L	66.55mm
Dimension d [Min]	27.69mm

Compatibility
This part may be used in place of the following parts from other manufacturers
Swagelok	SS-2000-9

SUE 90 Degree Union Elbows SUE-24

SUE 1-1/2 in. Tube Outside Diameter D 90 Degree Union Elbow

Dimensions
Dimension A	50.04mm
Dimension B	50.04mm
Dimension I	50.80mm
Dimension L	77.98mm
Dimension d [Min]	34.04mm

SUE 90 Degree Union Elbows SUE-32

SUE 2 in. Tube Outside Diameter D 90 Degree Union Elbow

Angle	90º
Description	SUE 1/16 in. Tube Outside Diameter D 90 Degree Union Elbow
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	1/16in, mm
Width Across Flats h	3/8in, mm

Angle	90º
Description	SUE 1/8 in. Tube Outside Diameter D 90 Degree Union Elbow
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	1/8in, mm
Width Across Flats h	3/8in, mm

Angle	90º
Description	SUE 1/4 in. Tube Outside Diameter D 90 Degree Union Elbow
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	1/4in, mm
Width Across Flats h	1/2in, mm

Angle	90º
Description	SUE 5/16 in. Tube Outside Diameter D 90 Degree Union Elbow
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	5/16in, mm
Width Across Flats h	5/8in, mm

Angle	90º
Description	SUE 3/8 in. Tube Outside Diameter D 90 Degree Union Elbow
Inch/Metric	Inch
Material	316 Stainless Steel
Tube Outside Diameter D	3/8in, mm
Width Across Flats h	5/8in, mm
