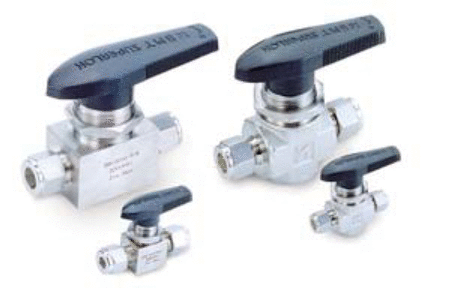

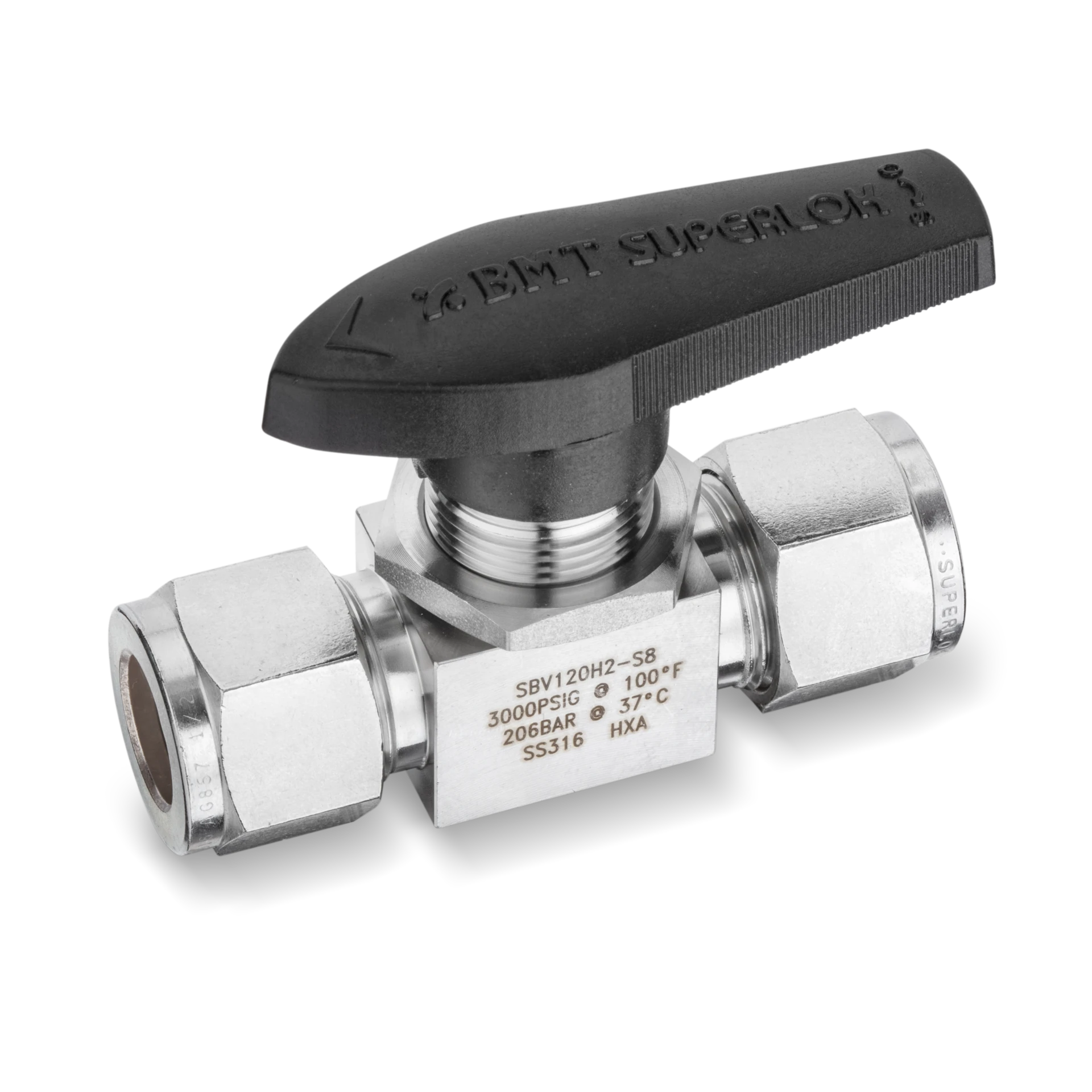

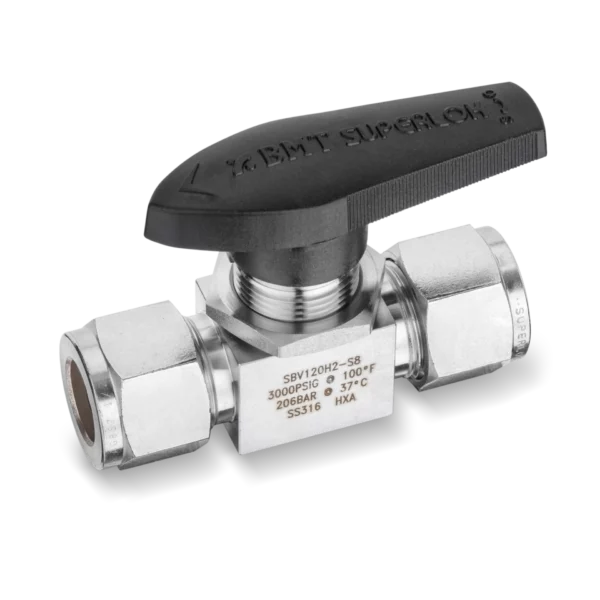

SBV120 Series Ball Valves
Price range: $63.09 through $340.67
See individual part details below
Access our complete line of ball valves designed for reliable flow control. Our selection ensures quarter-turn on-off operation. Browse below to instantly request a quote or purchase the ball valves you need.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
Simple design with one piece body Tight and smooth, low torque and easy operation One-piece ball stem Panel mountable Variety of End Connections Straight, Angle and 3-Way flow patterns Each and every valve is tested at the factory
| Inch/Metric | Inch |
|---|---|
| Pressure Rating | 206bar, 3000psig |
| Superlok Part Type | Ball Valve |
| Temperature Rating | 10 to 65ºC, 50 to 150ºF |
Available Sizes
SBV120 Series Ball Valves SBV120H1-F-2N
SBV 1/8 in. Female National Pipe Thread (FNPT) Thread, 3.2 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H1-S-2
SBV 1/8 in. Tube Outside Diameter D, 2.4 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H1-S-2-BRAS
SBV 1/8 in. Tube Outside Diameter D, 3000 psi Pressure [Max] Brass Ball Valve
SBV120 Series Ball Valves SBV120H1-S-4
SBV 1/4 in. Tube Outside Diameter D, 3.2 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H2-F-4N
SBV 1/4 in. Female National Pipe Thread (FNPT) Thread, 4.8 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H2-M-4N
SBV 1/4 in. Male National Pipe Taper (MNPT) Thread, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H2-S-4
SBV 1/4 in. Tube Outside Diameter D, 4.8 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H2-S-6
SBV 3/8 in. Tube Outside Diameter D, 4.8 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H2-S-8
SBV 1/2 in. Tube Outside Diameter D, 4.8 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H2A-S-4
SBV 1/4 in. Tube Outside Diameter D, Angle Pattern, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H3-F-4N
SBV 1/4 in. Female National Pipe Thread (FNPT) Thread, 7.1 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H3-F-6N
SBV 3/8 in. Female National Pipe Thread (FNPT) Thread, 7.1 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H3-S-6
SBV 3/8 in. Tube Outside Diameter D, 7.1 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H3A-S-6
SBV 3/8 in. Tube Outside Diameter D, Angle Pattern, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H4-F-8N
SBV 1/2 in. Female National Pipe Thread (FNPT) Thread, 10.3 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H4-S-8
SBV 1/2 in. Tube Outside Diameter D, 10.3 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H4-S-12
SBV 3/4 in. Tube Outside Diameter D, 10.3 mm Orifice, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H4A-F-8N
SBV 1/2 in. Female National Pipe Taper (FNPT) Thread, Angle Pattern, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H4A-S-8
SBV 1/2 in. Tube Outside Diameter D, Angle Pattern, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H4A-S-12
SBV 3/4 in. Tube Outside Diameter D, Angle Pattern, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H13-F-2N
SBV 1/8 in. Female National Pipe Taper (FNPT) Thread, 3-Way, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H13-S-2
SBV 1/8 in. Tube Outside Diameter D, 3-Way, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H13-S-4
SBV 1/4 in. Tube Outside Diameter D, 3-Way, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H23-F-4N
SBV 1/4 in. Female National Pipe Taper (FNPT) Thread, 3-Way, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H23-S-4
SBV 1/4 in. Tube Outside Diameter D, 3-Way, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H33-F-6N
SBV 3/8 in. Female National Pipe Taper (FNPT) Thread, 3-Way, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H33-S-6
SBV 3/8 in. Tube Outside Diameter D, 3-Way, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H43-F-8N
SBV 1/2 in. Female National Pipe Taper (FNPT) Thread, 3-Way, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H43-S-8
SBV 1/2 in. Tube Outside Diameter D, 3-Way, 3000 psi Pressure [Max] Ball Valve
SBV120 Series Ball Valves SBV120H43-S-12
SBV 3/4 in. Tube Outside Diameter D, 3-Way, 3000 psi Pressure [Max] Ball Valve
