Description

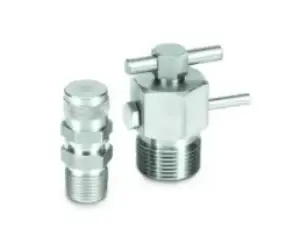

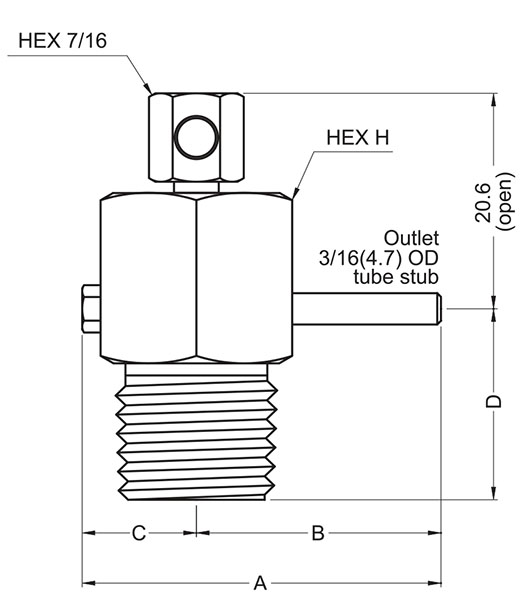

Compact for convenient installation. Back stop screw prevents accidental removal of stem. Chrome-plated stem threads and tip improves valve life. Male NPT or ISO Thread end connection.
| Inch/Metric | Inch |
|---|---|
| Inlet End Connection Type | Male National Pipe Thread (NPT) |
| Material | 316 Stainless Steel |
| Outlet End Connection Size | 3/8in |
| Outlet End Connection Type | Outside Diameter Tube Stub |
| Superlok Part Type | Bleed Valve |
Available Sizes
SBLV Bleed Valves SBLV-M-2N-V
SBLV 1/8 in. Male National Pipe Taper (MNPT), Vent Tube Inlet End Connection Type Bleed Valve
SBLV Bleed Valves SBLV-M-4N-BH
SBLV 1/4 in. Male National Pipe Taper (MNPT), Bar Handle, Back-Stop Screw, Vent Tube Inlet End Connection Type Bleed Valve
SBLV Bleed Valves SBLV-M-4N-V
SBLV 1/4 in. Male National Pipe Taper (MNPT), Vent Tube Inlet End Connection Type Bleed Valve
SBLV Bleed Valves SBLV-M-6N-BH
SBLV 3/8 in. Male National Pipe Taper (MNPT), Bar Handle, Back-Stop Screw, Vent Tube Inlet End Connection Type Bleed Valve
SBLV Bleed Valves SBLV-M-6N-V
SBLV 3/8 in. Male National Pipe Taper (MNPT), Vent Tube Inlet End Connection Type Bleed Valve
SBLV Bleed Valves SBLV-M-8N
SBLV 1/2 in. Male National Pipe Taper (MNPT), Back-Stop Screw, Vent Tube Inlet End Connection Type Bleed Valve
SBLV Bleed Valves SBLV-M-8N-BH
SBLV 1/2 in. Male National Pipe Taper (MNPT), Bar Handle, Back-Stop Screw, Vent Tube Inlet End Connection Type Bleed Valve
SBLV Bleed Valves SBLV-M-8N-V
SBLV 1/2 in. Male National Pipe Taper (MNPT), Vent Tube Inlet End Connection Type Bleed Valve
